RealVision 3D™ Sonar Transducer for the new Axiom, Axiom Pro & Axiom XL Multifunction Displays.

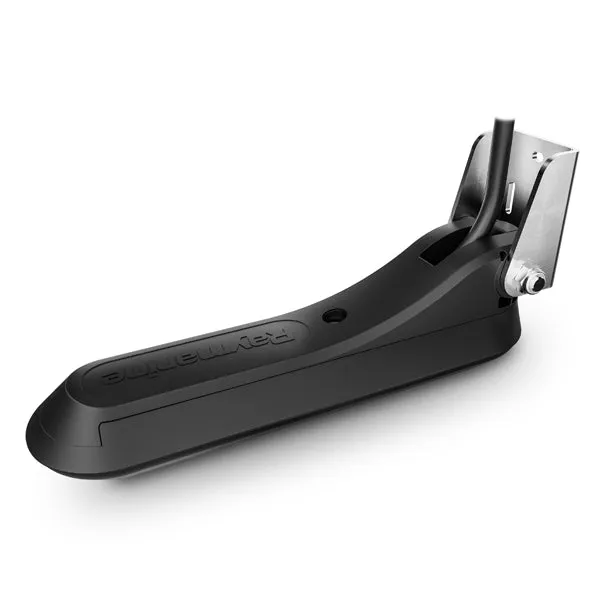

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilises the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

Features

- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Wide spectrum CHIRP with DownVision, SideVision and RealVision3D
- Built-in AHRS (stabilises sonar imagery)

Specifications

- Model: RV-100
- Part Number: A80464
- Installation: Transom Mount
- Material: Plastic
- Power (RMS) -
- Max Depth (Ft)3D: 300 | DownVision: 600 | Port: 300 | Starboard: 300 | Conical: 900
- Frequency (KHz): RealVision | High CHIRP
- Beam Width (L/H): 3D: 180° | Down: 60° | Conical: 25°
- Records: Depth and Temperature
- Approved Hull Material: Fiberglass | Wood | Metal
- Cable Length (Ft/M): 26/8
- Supported Deadrise/Transom Angles: 0-90° Transom
